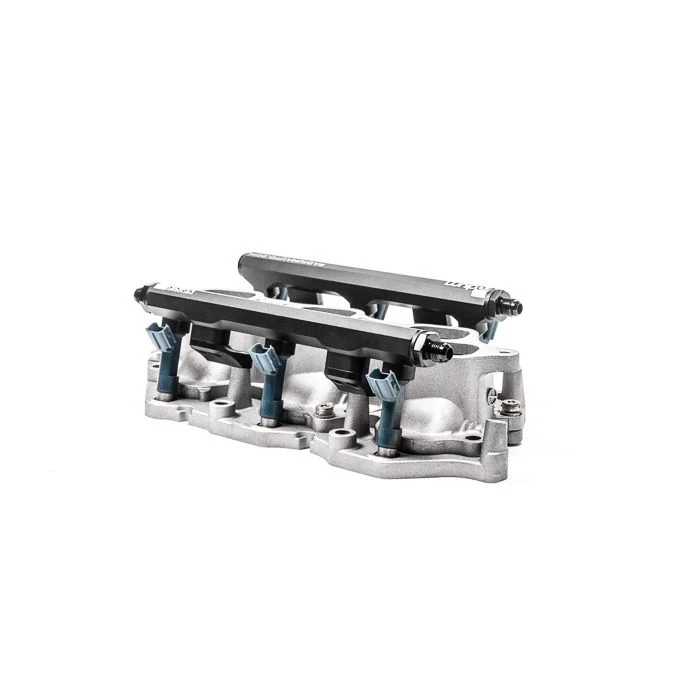

Radium Engineering Fuel Rails Toyota 1GR-FE Single VVT-I (2002-2015) 20-0897

Fitment Information

• Toyota Tacoma (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015)
• Toyota 4Runner (2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009)
• Toyota Tundra (2005, 2006, 2007, 2008, 2009)
• Toyota FJ Cruiser (2006, 2007, 2008, 2009)
• Toyota Hilux Surf (2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009)
• Toyota Fortuner (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015)
• Toyota Hilux (2005-up)
• Toyota Land Cruiser (2002-up)

Specifications

• Anodized surface finish for wear and corrosion resistance
• Lighweight aluminum construction
• Inner bore diameter: 0.7 inch

• Compatible with OEM and aftermarket equivalent fuel injectors

• Can be converted to a pressure regulated return system

• No special tools required for installation

• Fits under the factory intake manifold and engine cover

• Compatible with naturally aspirated and OEM supercharged vehicles

Product Description

Manufactured with 0.69" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. CNC machined aluminum mounting tabs are included for a factory fit and to maintain the original fuel rail height so both OEM or aftermarket equivalent injectors can work.

Each fuel rail features two 8AN ORB threaded end ports (4 total).

The two fuel rails and all necessary mounting hardware are provided. Fittings and hose will need to be individually purchased.

FUEL INJECTOR COMPATIBILITY
This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.

PORTS AND FITTINGS

The fuel rail ports are tapped for 8AN ORB.

8AN ORB Adapter Fittings
8AN ORB Direct Mount Regulators
8AN ORB Fuel Pulse Dampers
Fuel Pressure Gauge Adapters
